Compatible prevention of accidents involving rotating parts and daily maintainability!
※There are many dangers lurking at the site of a conveyor belt, the most common of which is an accident caused by being caught or caught in.
This is mostly due to work in progress, such as cleaning fallen objects, removing debris from rollers and pulleys, and adjusting meanders while the conveyor is running, but it can also be due to secondary factors such as tripping over sediment or slipping feet.

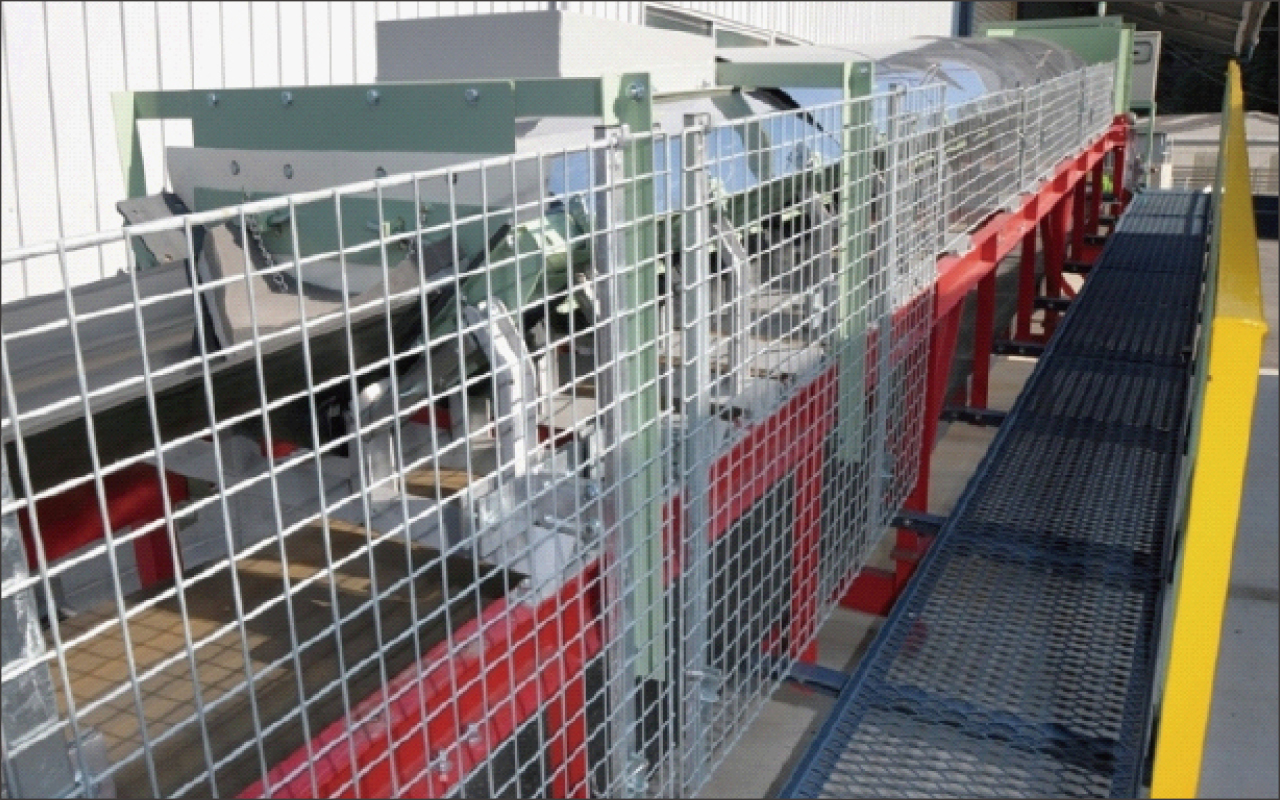

JRC recommends the installation of "safety fences" to ensure the safety of workers and to alert them.
Product Features
-
Structure with excellent strength
The plated 50mm square wire gauze surrounds the φ4 fence with a φ8 ring, and is strong enough to withstand the harsh installation environment of the conveyor.
-
Removal and attachment are OK when necessary.

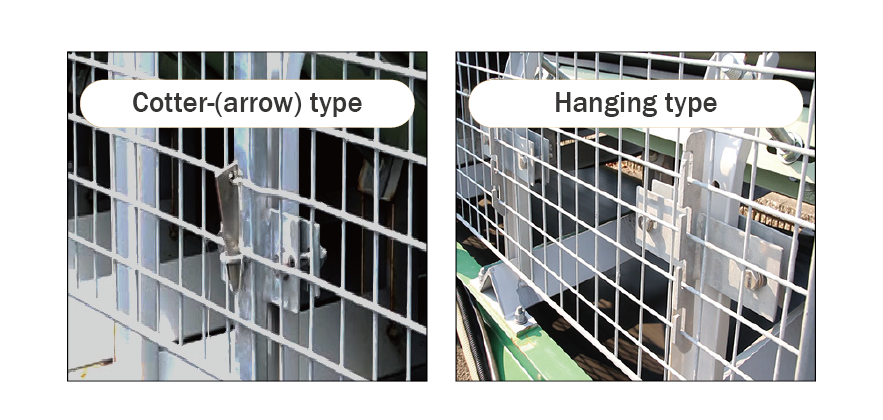

"Cotter (arrow) type" is adopted for mounting and dismounting in consideration of maintainability.
There is also a "Hanging type" that does not require tools or hammers and can be attached or detached more easily. -
※Can be attached to existing equipment

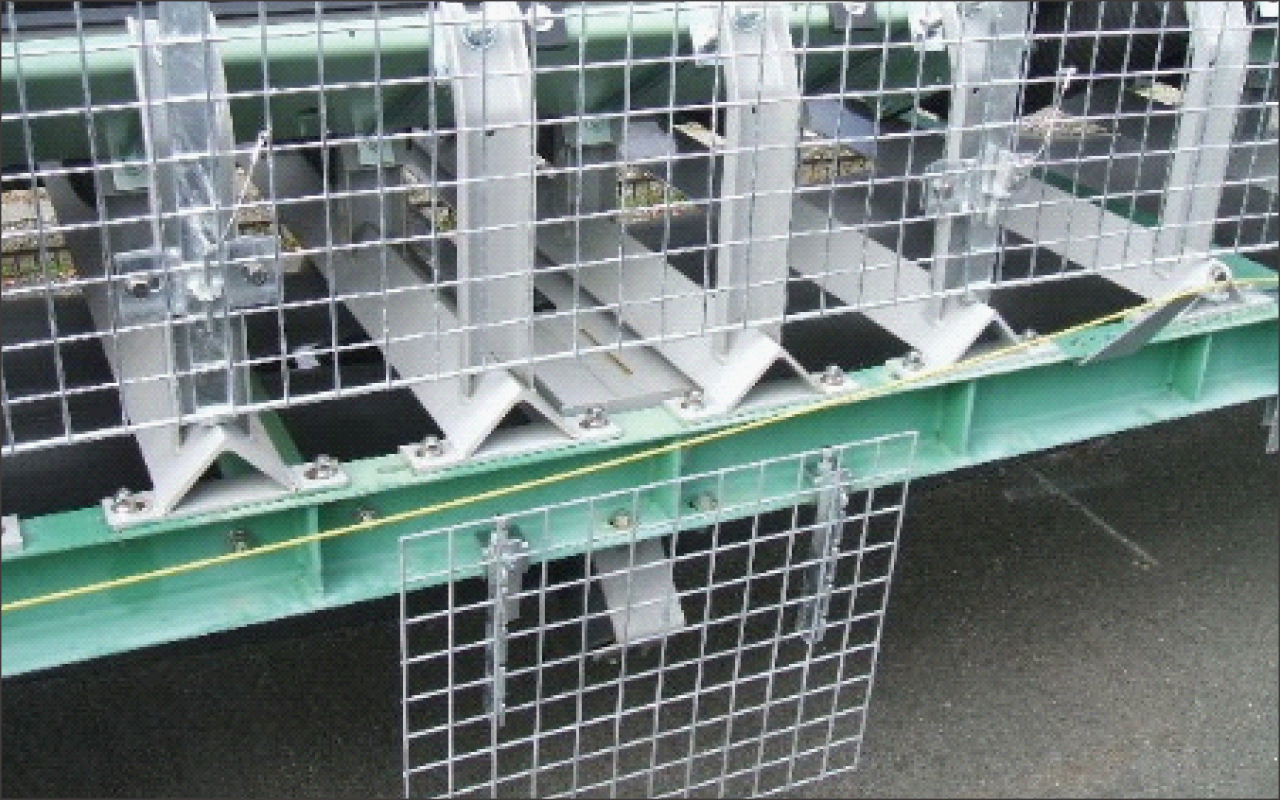

We propose the most suitable installation method for the customer from two types, one is mounted on the carrier idler and the other is mounted on the
conveyor frame.
Accidents involving pinching and entanglement are as follows!

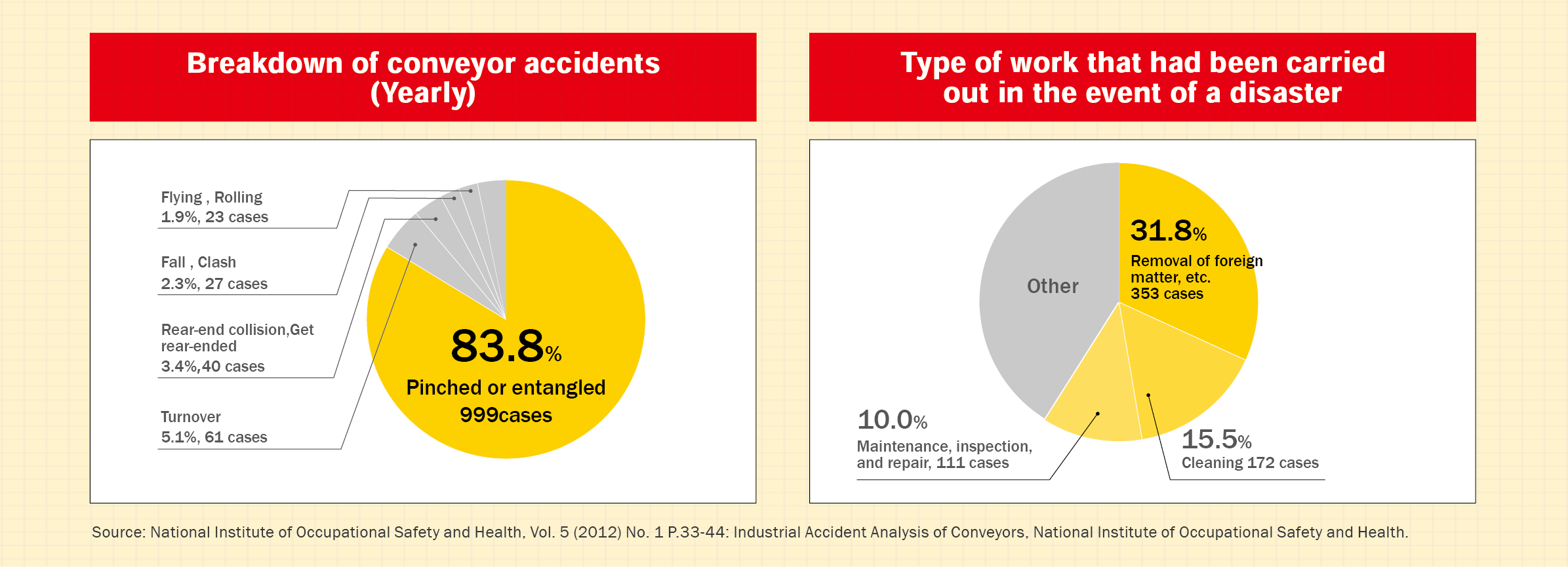

Among the 1192 occupational injuries caused by conveyors that occur for more than 4 days off work (caused by conveyors in 2006), the overwhelming incidence of "Pinched or entangled" is over 80%. Establishment of disaster prevention measures with emphasis on these incidents is considered particularly important.
